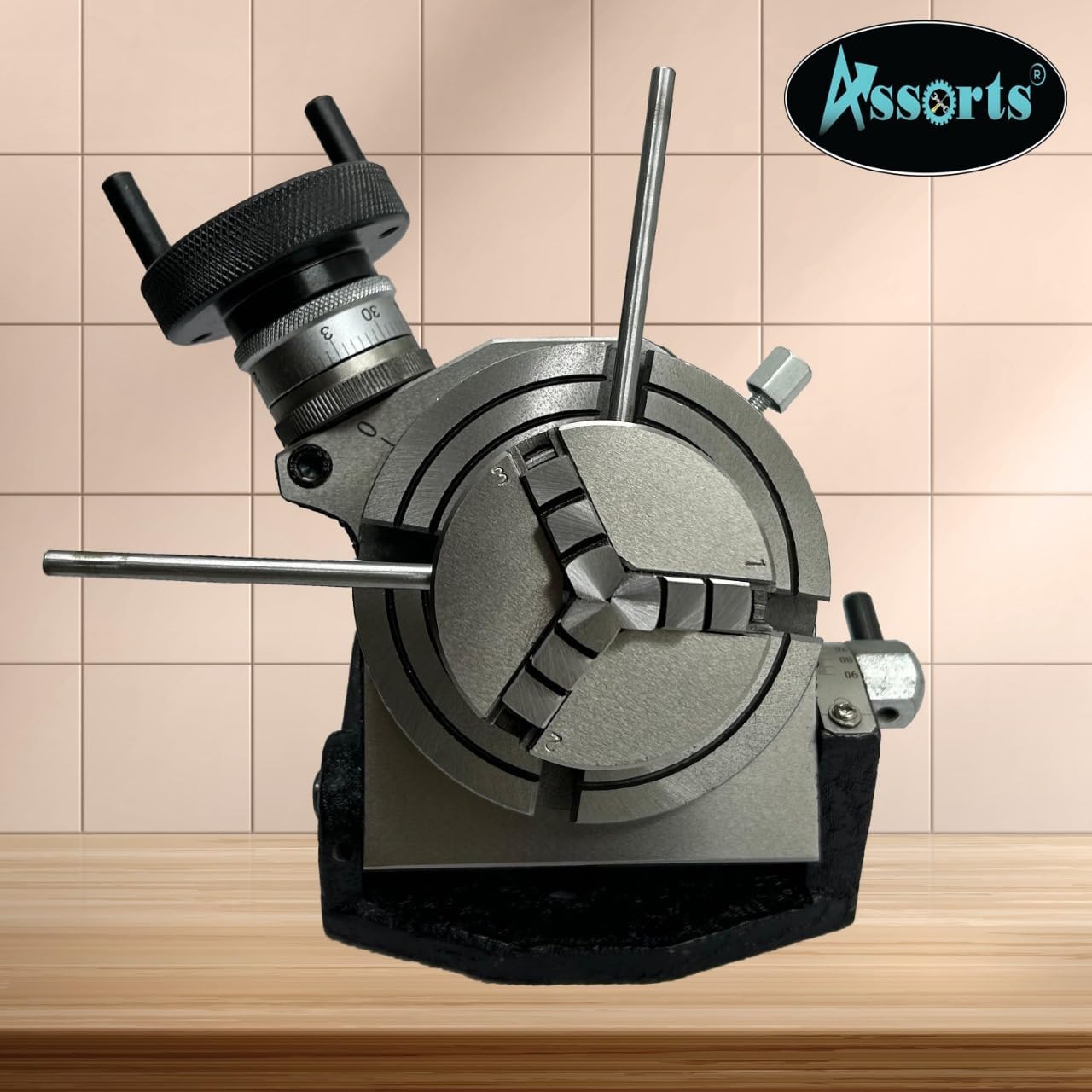

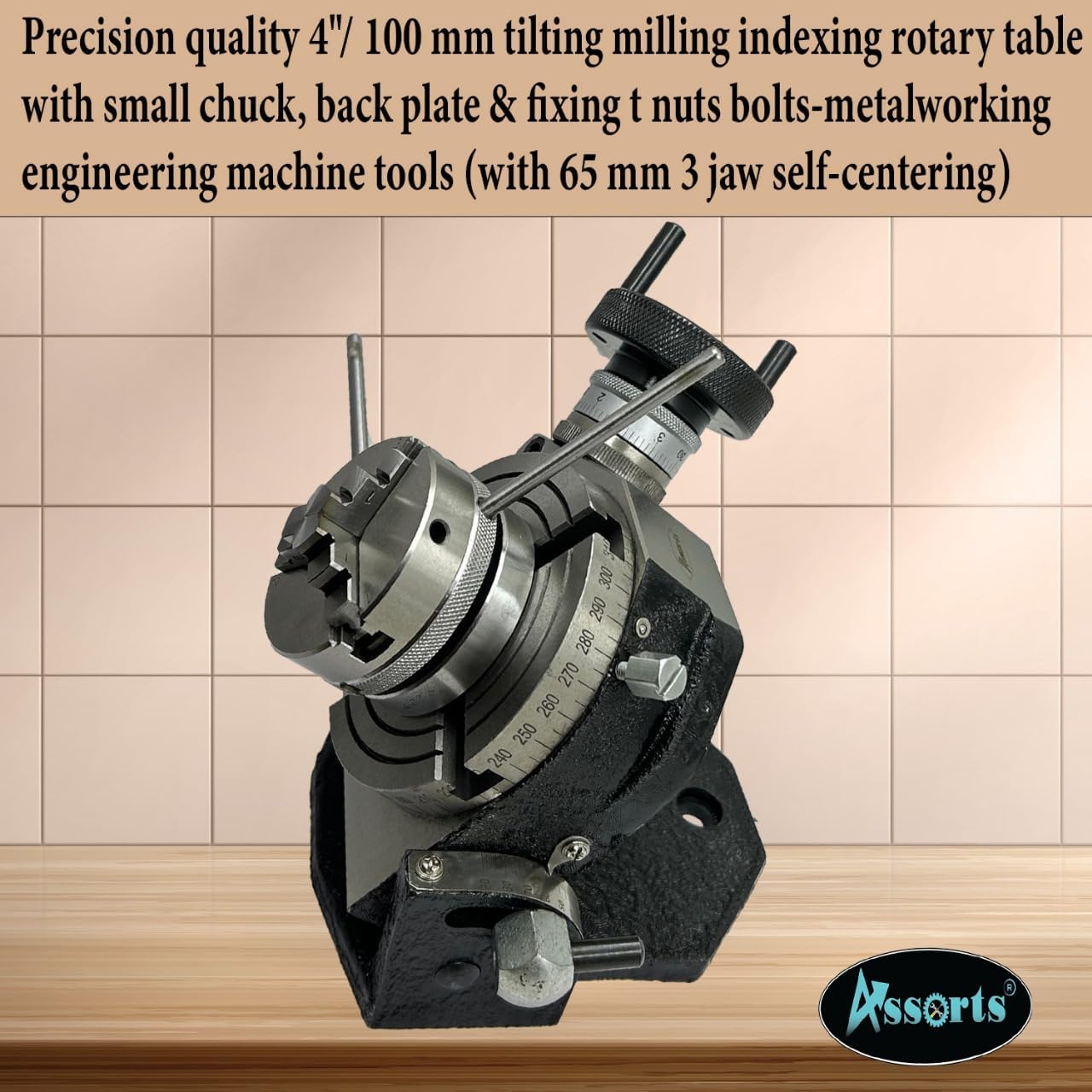

Precision Quality 4"/ 100 Mm Tilting Milling Indexing Rotary Table With Small Chuck, Back Plate & Fixing T Nuts Bolts-metalworking Engineering Machine Tools (With 65 MM 3 Jaw Self Centering)
Product details
| Management number | 216517372 | Release Date | 2026/04/19 | List Price | $68.80 | Model Number | 216517372 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

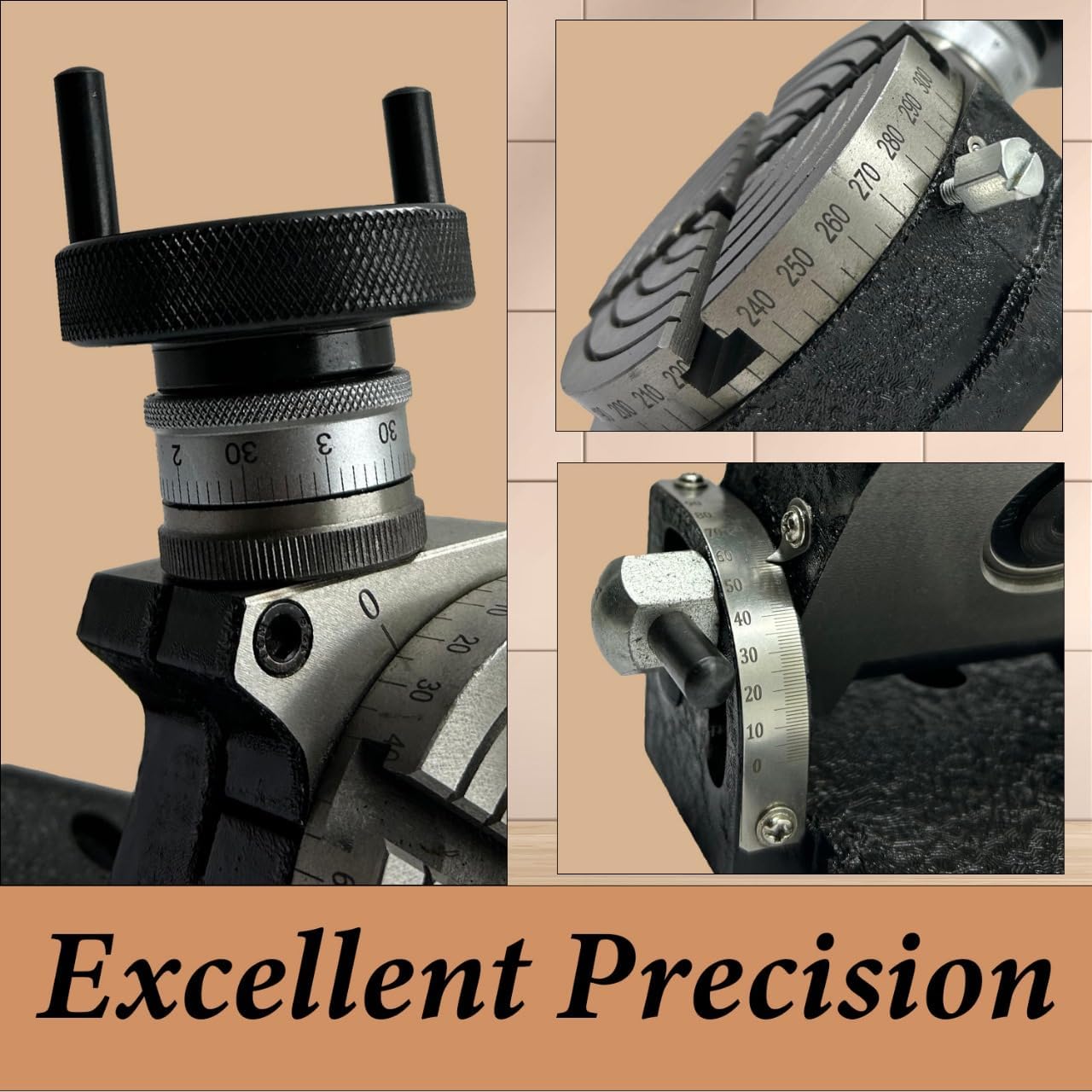

Features to tilts between 0- 90 degrees & can be locked at any position. Table diameter 100 mm table is graduated 360 degrees. Worm gear ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 degrees. Center height in vertical position: 2-5/8" (66 mm approx.) hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in horizontal & vertical position. Supplied with a suitable small 65 mm 3 jaws self centeing chuck with back plate & fixing t nuts bolts. 65 mm 3 jaws self centering chuck m14 x 1 mounting thread back plate also has m14 x 1 thread spigot to mount the chuck on it. Back plate is drilled in a manner that it can be fitted both for 3 as well as 4 slot rotary table. Suitable t -nuts are also supplied.
- Precision Quality 4" /100 MM Tilting Rotary Milling Indexing Rotary Table

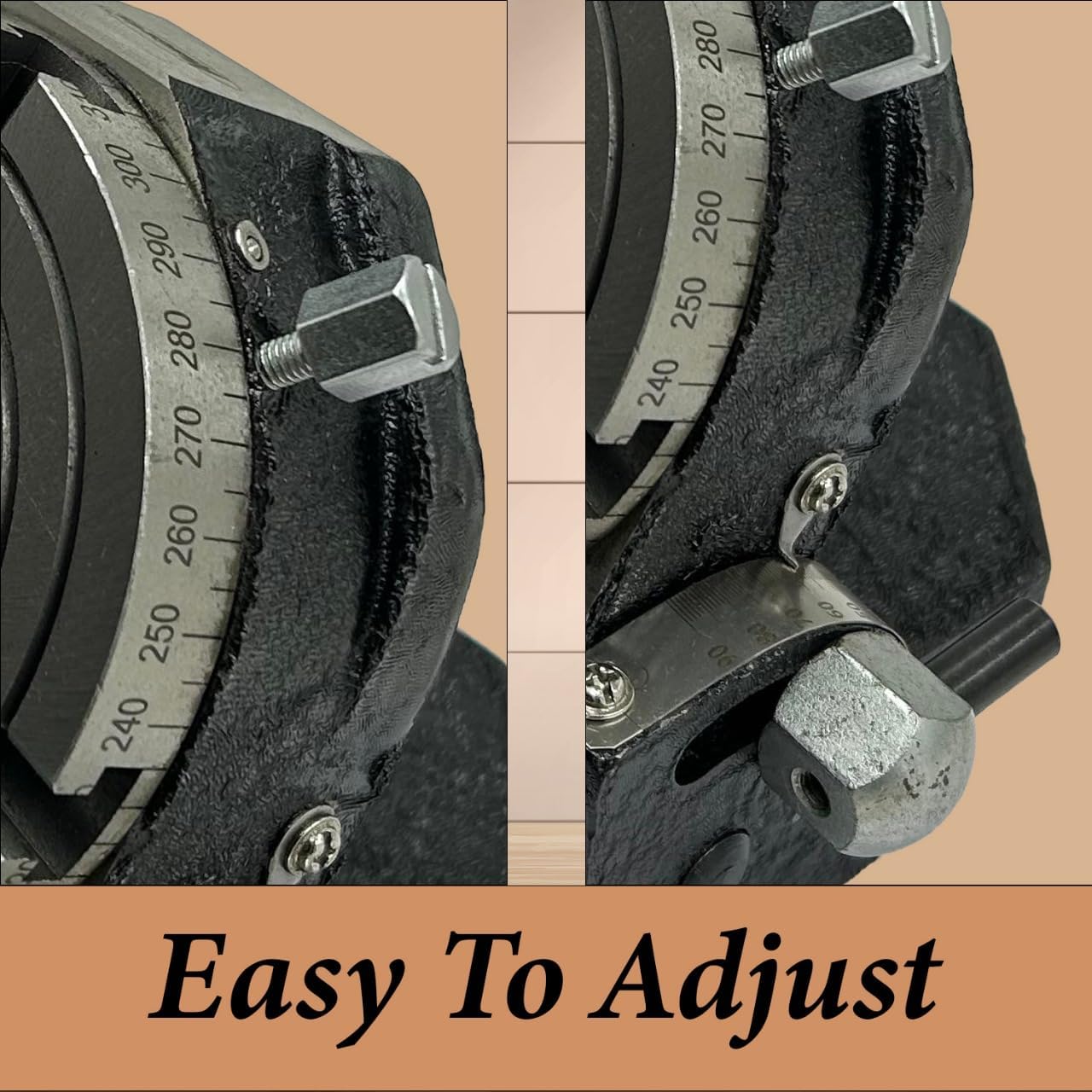

- Features To Tilt And Locked At Any Angle From 0 To 90 Degrees.
- Worm Gear Ration Is 1:36 Which Means That 1 Handle Rotation Shall Turn The Table By 10 Degrees.

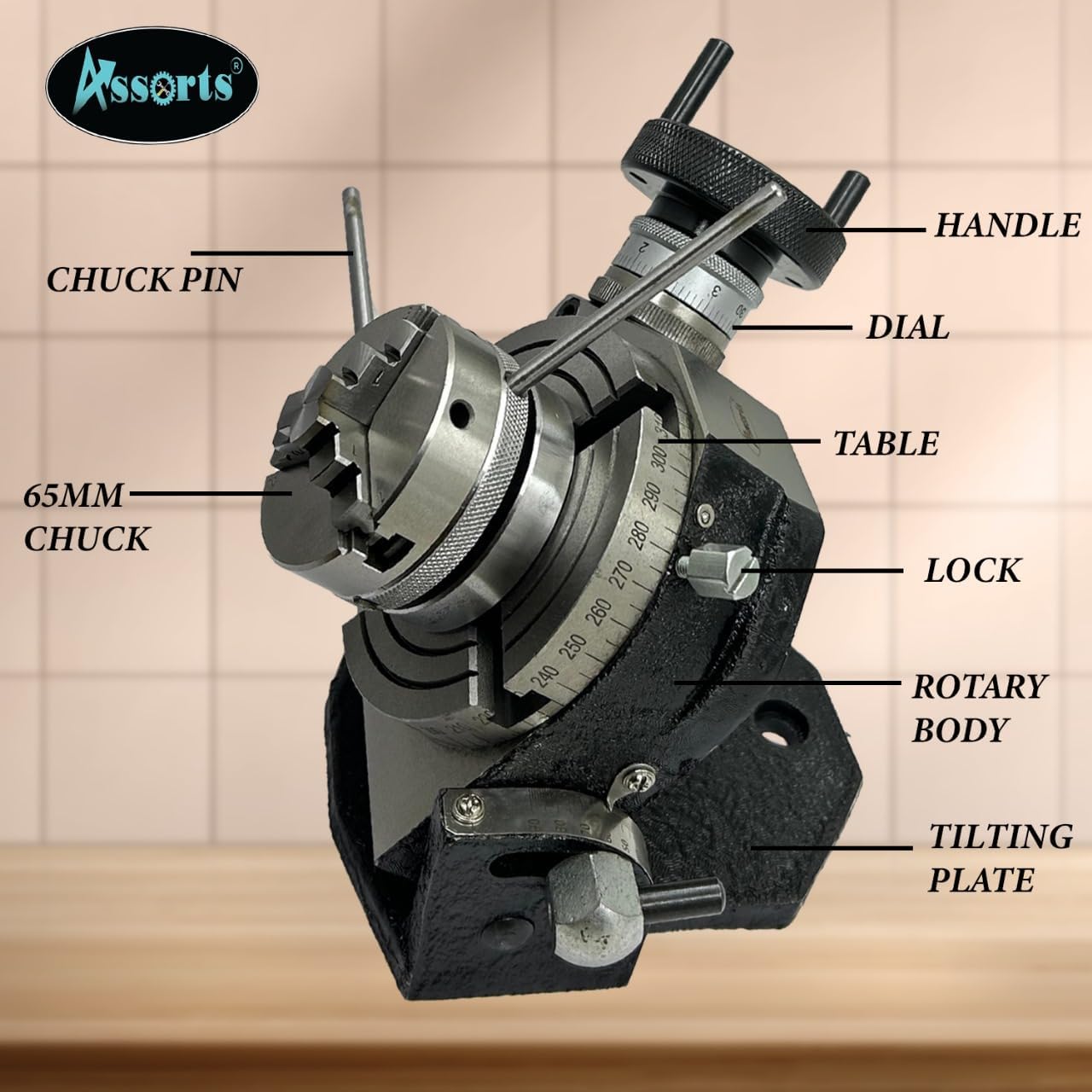

- Supplied With A 65 MM 3 Jaws Self Centering Small Chuck With Back Plate & Fixing T Nuts Bolts
| Color | Wrinkle Black Paint Finish & Ground Finish |
|---|---|
| Brand Name | ASSORTS |
| Item Weight | 5.5 Kilograms |
| Manufacturer | ASSORTSMACHINETOOLS |
| Model Number | be1342da-f420-497d-a12e-f648b789ce23 |
| Material Type | Cast Iron |
| Number of Pieces | 1 |
| Included Components | 4"/ 100 MM TILTING ROTARY TABLE WITH SMALL CHUCK, BACK PLATE & FIXING T NUTS BOLTS WITH 65 MM 3 JAW SELF CENTERING |
| Manufacturer Warranty Description | 3 Months |
